DJ, DJJ1 and DJJ2

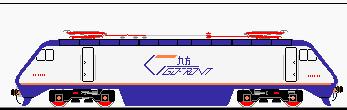

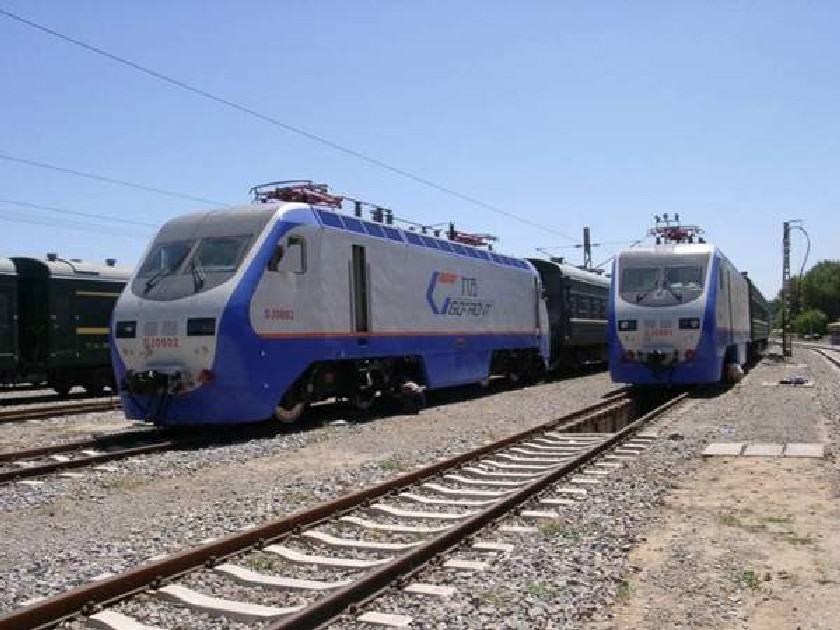

DJ and DJ2 “Olympic Star”
In short
Locomotive and power heads developed by Zhuzhou Electric Locomotive Works. The electric equipment is a Mitrac 3000, which is used on the Traxx family. It is built in GTO technology with water cooling, as the TRAXX F140AC1. Each traction motor is driven by its own converter. The continuous, and maximal, power rating is 4.8 MW. Each traction motor is rated at 1.225 MW. In commercial service since 2001. Four batches. First and third batch are full locomotives.
Statistics
- CR DJ 0001 to 0002
- DJ2 0001 to 0002
- Factory numbers: ?
- Approved for China
- First built 2000 for DJ and 2001 for DJ2
- Purchased by CR in 2001
Technical details
| Manufacturer | Zhuzhou Locomotive Works |
|---|---|
| Product name | DJ and DJ2 Olympics Star |
| Product description | Asynchronous electric passenger locomotive |
| Top speed | 220 km/h |
| Power system | 25 kV 50 Hz AC |
| Axles / wheel arrangement | 4 / Bo′Bo′ |
| Weight | DJ: 82 t · DJ2: 84 t |
| Length (over buffers) | 19 000 mm |
| Continuous power rating | 4 800 kW |
| Continuous traction effort DJ | 206 kN at 84 km/h |
| Continuous traction effort DJ2 | 233 kN at 74 km/h |
| Starting traction effort | 264 kN |

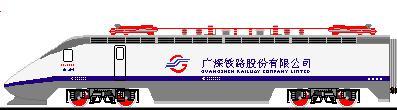

DJJ1 “Blue Arrow”
In short
Second batch of 8 power heads. Train formation: power head – 5 cars – driving car. Power head and cars are both developments of the X2000 from ADtranz (former ASEA and now Bombardier): bogies and bodies. All 8 trains are currently running between Guangzhou and Shenzhen. In commercial service since 2002.
Statistics
- CR DJJ1 0001 to 0008
- Factory numbers: ?
- Approved for China
- First built 2001
- Purchased by CR in 2002
Technical details
| Manufacturer | Zhuzhou Locomotive Works |
|---|---|
| Product name | Blue Arrow |
| Product description | Asynchronous electric passenger power head |
| Top speed | 230 km/h |
| Power system | 25 kV 50 Hz AC |
| Axles / wheel arrangement | 4 / Bo′Bo′ |
| Weight | 84 t |
| Length (over buffers) | 20 500 mm |
| Continuous power rating | 4 800 kW |
| Continuous traction effort | 164 kN at 120 km/h |
| Starting traction effort | 211 kN |

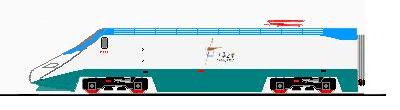

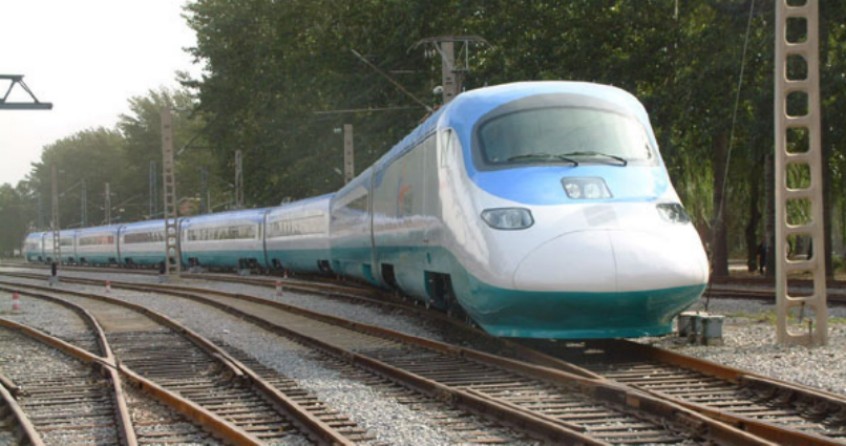

DJJ2 “China Star”
In short
Fourth batch of 2 power heads. Train formation: power head – 9 cars – power head. The look of the cars is quite similar to the German ICE1 or the Italian ETR500. This train holds the speed record in China: 321.5 km/h on the new Qinshen line. In commercial service between Shenyang and Shanhaiguan from August 2005, but in a first step limited to 160 km/h like the other high-speed trains. The commercial speed after pioneer service will be 270 km/h. This train is not yet produced in series.
Statistics
- CR DJJ2 0001 and 0001B
- Factory numbers: ?
- Approved for China
- First built 2002
- Purchased by CR in 2005
Technical details
| Manufacturer | Zhuzhou Locomotive Works |
|---|---|
| Product name | China Star |
| Product description | Asynchronous electric passenger power head |
| Top speed | 320 km/h |
| Power system | 25 kV 50 Hz AC |
| Axles / wheel arrangement | 4 / Bo′Bo′ |
| Weight | 84 t |
| Length (over buffers) | 21 700 mm |
| Continuous power rating | 4 800 kW |
| Continuous traction effort | 157 kN at 110 km/h |
| Starting traction effort | 211 kN |
